COOLING
PACKAGED AIR CONDITIONING UNIT
For medium size cooling capacity requirements, look no further, HI AIR KOREA(HAK) PACKAGED AIR CONDITIONING UNIT offers total reliable performance by one self contained unit.

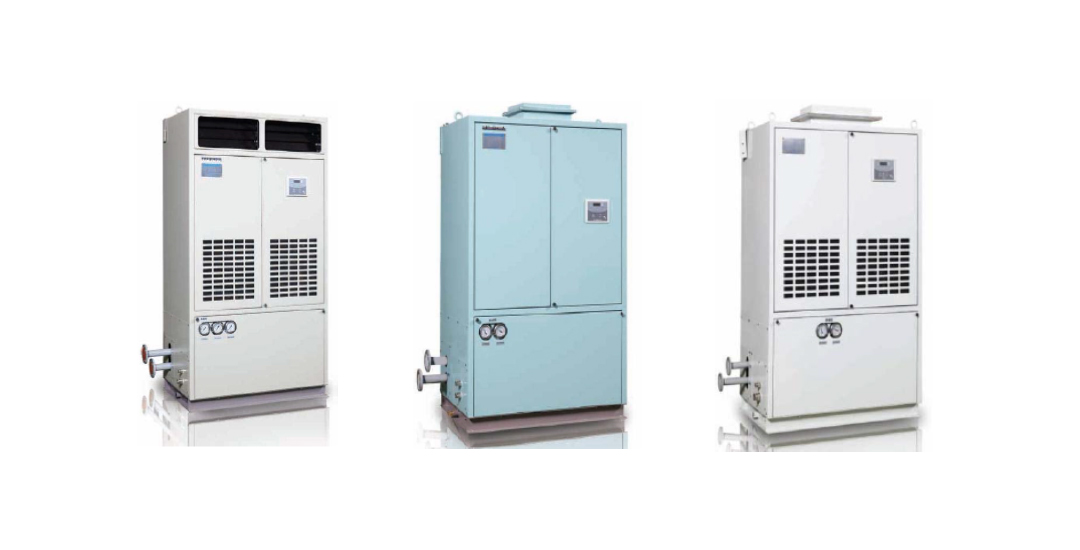

The PACKAGED AIR CONDITIONING UNIT is composed of compressor, condenser, filter, fan, motor, cooling/heating coil and starter on one skid for easy installation.
Simple and compact in design, this all in one piece PACKAGED AIR CONDITIONING UNIT is convenient for engine control rooms, workshops, galley, etc where local cooling / heating is required apart from the main A/C system.
With its high quality components, HAK PACKAGED AIR CONDITIONING UNIT provides complete air conditioning solution and with the best performance.
-
FEATURES
SELECTION
- Extensive range of cooling capacities from 3 USRT to 20 USRT
- Customized design for offshore applications
CONSTRUCTION
- Simple and compact self-contained assembly especially designed for installation aboard vessels
- Stainless steel casing(SS304 / SS316) with single skin
- Mineral wool insulation
- High quality integrated components for maximum reliability
- The fan’s mounting ensures low level of noise and vibrations
- Built in directly coupled centrifugal fan with motor
- Washable flat filter is placed in front of the evaporator
- Copper tube with copper fins cooling coil
- Equipped with scroll type compressor
- Low noise air conditioners
- A cleanable shell and tube type condenser with fresh water cooling
- Cooling medium : HFC refrigerants(R-404A, R-407C, R-134a), Chilled water
- Power supply : 380/440/690Vac, 50/60Hz, 3-phase
- Starter : Mounted on the front door(temp. indicator, push buttons, indicating lamps)
- Factory assembled, internally wired, fully refrigerant charged, tested under strict quality standards
MAINTENANCE
- Easy installation and maintenance
-
OPTIONS
- Stainless steel casing(SS316L) and coating
- Flexible connections and counter flanges for air intake and outlet
- Dampers for fresh and return air intake
- Electric heating coil / Steam heating coil
- A cleanable shell and tube(copper/nickel) type condenser for sea water cooling
- Thermometer for cooling water In/Out
- Automatic sea water control valve
- Other refrigerants are available
-
CAPACITIES
LINE UP
CAPACITY & DIMENSIONS(STANDARD)
(Design basis : Air inlet 27 ℃ RH 50 %, Air outlet 15 ℃ RH 90 %)_R-407C / Fresh water 36 ℃
MODEL CAPACITY AIR FLOW RATE Ext. STATIC PRESSURE POWER INPUT DIMENSION
(mm)MIN.SERVICE SPACE

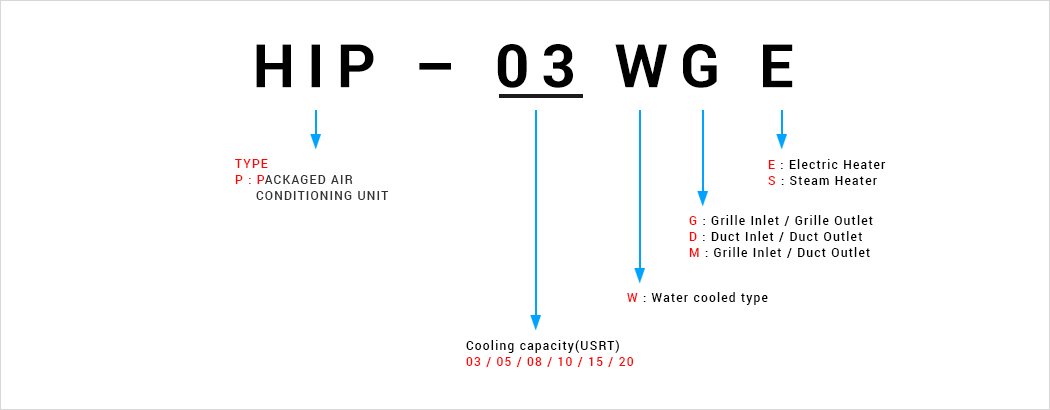

(mm)(kW) (㎥/h) (Pa) (kW) WIDTH HEIGHT DEPTH FRONT RIGHT LEFT REAR WATER COOLED GRILLE INLET / GRILLE OUTLET HIP-03WG* 10.5 1,800 N/A 2.8 1,000 1,750 600 1,000 1,000 300 300 HIP-05WG* 17.4 2,400 N/A 4.6 1,000 1,750 600 1,000 1,000 300 300 HIP-08WG* 25.6 3,360 N/A 7.1 1,200 1,930 700 1,000 1,000 300 300 HIP-10WG* 34.9 5,100 N/A 9.4 1,400 2,100 750 1,000 1,100 300 300 HIP-15WG* 52.3 7,200 N/A 14.5 1,600 2,100 900 1,000 1,300 300 300 HIP-20WG* 69.7 9,600 N/A 20.0 1,700 2,430 900 1,000 1,400 300 300 WATER COOLED DUCT INLET / DUCT OUTLET HIP-03WD* 10.5 1,800 350 3.1 1,000 1,520 600 1,000 1,000 300 300 HIP-05WD* 17.4 2,400 350 4.9 1,000 1,520 650 1,000 1,000 300 300 HIP-08WD* 25.6 3,360 350 8.2 1,200 1,800 700 1,000 1,000 300 300 HIP-10WD* 34.9 5,100 350 11.1 1,400 2,000 750 1,000 1,100 300 300 HIP-15WD* 52.3 7,200 350 16.8 1,600 2,150 900 1,000 1,300 300 300 HIP-20WD* 69.7 9,600 350 22.2 1,700 2,100 900 1,000 1,400 300 300 WATER COOLED GRILLE INLET / DUCT OUTLET HIP-03WM* 10.5 1,800 350 3.1 1,000 1,520 600 1,000 1,000 300 300 HIP-05WM* 17.4 2,400 350 4.9 1,000 1,520 650 1,000 1,000 300 300 HIP-08WM* 25.6 3,360 350 8.2 1,200 1,800 700 1,000 1,000 300 300 HIP-10WM* 34.9 5,100 350 11.1 1,400 2,000 750 1,000 1,100 300 300 HIP-15WM* 52.3 7,200 350 16.8 1,600 2,150 900 1,000 1,300 300 300 HIP-20WM* 69.7 9,600 350 22.2 1,700 2,150 900 1,000 1,400 300 300 - DOCUMENTS
