VENTILATION
CENTRIFUGAL FAN
HI AIR KOREA(HAK) CENTRIFUGAL FAN is specially designed for light duty and high efficiency. They are available in limited types and capacities and for the indoor use in relatively moderate condition.
The CENTRIFUGAL FAN is built considering size, efficiency, reliability and maintainability.
The CENTRIFUGAL FAN is cost effective solution that can comply with the general requirements of global standards.
HAK CENTRIFUGAL FAN is specifically constructed to operate in various marine conditions. Use of CENTRIFUGALFAN can maintain desired room conditions by mechanical ventilation where higher static pressure is required than those of the axial flow fans.
-
FEATURES
CK

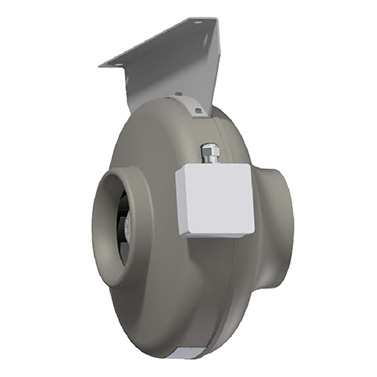

- CK(Duct in-line CENTRIFUGAL FAN) is duct in-line and low noise fan, made of galvanized sheet steel designed for well-suited for small ventilation system or boosting purpose.
- CK has radial type impellers with backward curved blades. The feature a compact and practical design for installation in round ducts.
- CK can provide relatively higher pressure at small air flow with minimum noise than those of axial flow fan.
- CK is for 1x220 V, 60 Hz power supply, enclosure IP44.
-
OPTIONS
- Flexible connection
- Wire screen
- Mounting support
- CAPACITIES
CK
Unit : [mm]
SPEC' ØA ØA' ØB E MAX. AIRFLOW RATE(m3/h) MAX. STATICPRESSURE(Pa) MODEL CK 100C 100 100 242 187 356 544 CK 125C 125 125 242 185 511 499 CK 160C 160 160 344 228 1,015 571 CK 200A 200 200 344 226 1,091 564 CK 315C 315 315 402 257 1,663 850 - DOCUMENTS
