For medium size cooling capacity requirements, look no further, HI AIR KOREA(HAK) Industry plant PACKAGED AIR CONDITIONING UNIT(PACU) offers total reliable performance by experiences.

The PACU is classified as air cooled type and water cooled type according to condensation methods. The air cooled type is composed of indoor unit and outdoor unit whereas the water cooled type is compact self-contained assembly on one skid.

Simple and compact in design PACU is convenient for control rooms, workshops, kitchen, etc. where local cooling / heating is required apart from the main A/C system.

With its high quality components, HAK PACU provides complete air conditioning solution with the best performance.

  • FEATURES

    SELECTION

    • Extensive range of cooling capacities from 3 USRT to 20 USRT
    • Customized design for industry plant applications

    CONSTRUCTION

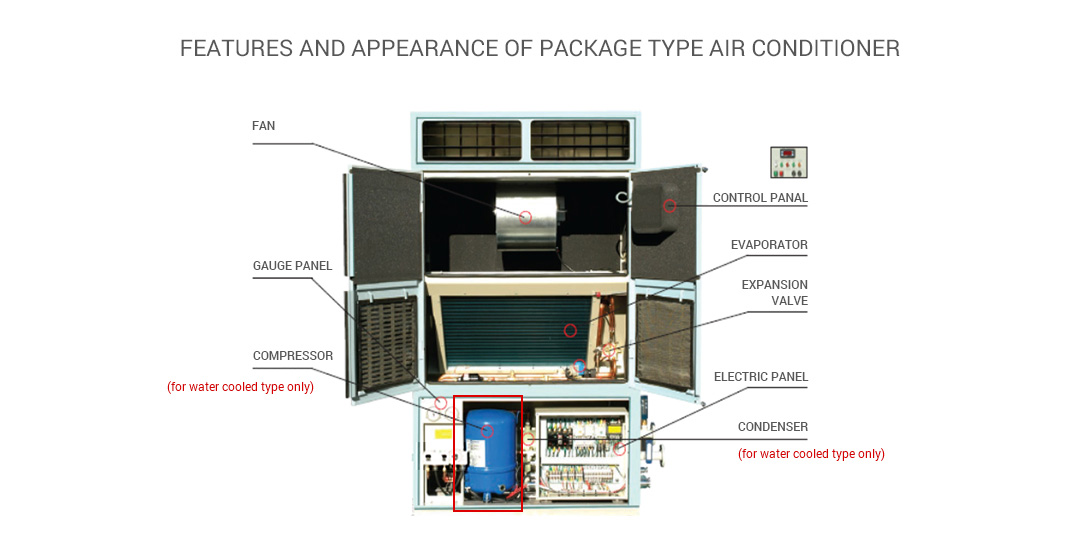

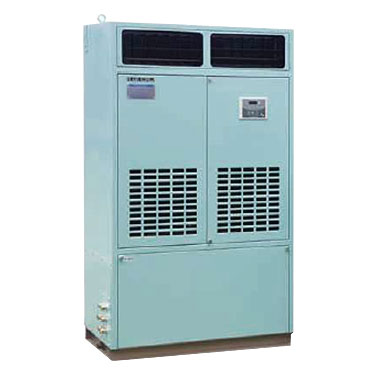

    WATER COOLED PACKAGED AIR CONDITIONING UNIT
    • Steel casing with single skin
    • Polyurethane foam insulation
    • High quality integrated components for maximum reliability
      • The fan’s mounting ensures low level of noise and vibrations
      • A washable flat filter is placed in front of the evaporator
      • With built in directly coupled centrifugal fan with motor
    • Cooling medium : HFC refrigerants(R-407C, R-134a)
    • Power supply : 380/400/415/440/460/480Vac, 50/60Hz, 3-phase
    • Starter : Mounted on the front door(temp. indicator, push buttons, indicating lamps)
    • Factory assembled, internally wired, tested under strict quality standards
    AIR COOLED PACKAGED AIR CONDITIONING UNIT
    • Indoor Unit is same as water cooled PACU except that compressor and condenser is not installed in indoor unit.

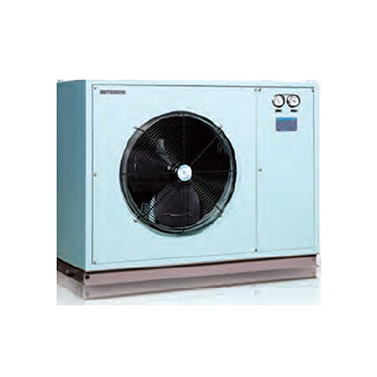

    OUTDOOR UNIT(AIR COOLED CONDENSING UNIT)
    • Equipped with scroll type compressor
    • Copper tube with aluminum fins condensing coil
    • Equipped with built in directly coupled axial fan with motor and protection cover

    MAINTENANCE

    • Easy installation and maintenance
  • OPTIONS

    INDOOR UNIT(PACKAGED AIR CONDITIONING UNIT)

    • Stainless steel casing(SS304 or SS316L) and coating
    • Flexible connections and counter flanges for air intake and outlet
    • Dampers for fresh and return air intake
    • Electric heating coil / Steam heating coil
    • Copper tube with copper fins cooling coil

    OUTDOOR UNIT(AIR COOLED CONDENSING UNIT)

    • Compressor : reciprocating or screw type
    • Copper tube with copper fins condensing coil
    • Heresite & UV coating for condensing coil
  • CAPACITIES

    CAPACITY & DIMENSIONS(STANDARD)

    AIR COOLED PACU
    WATER COOLED PACU

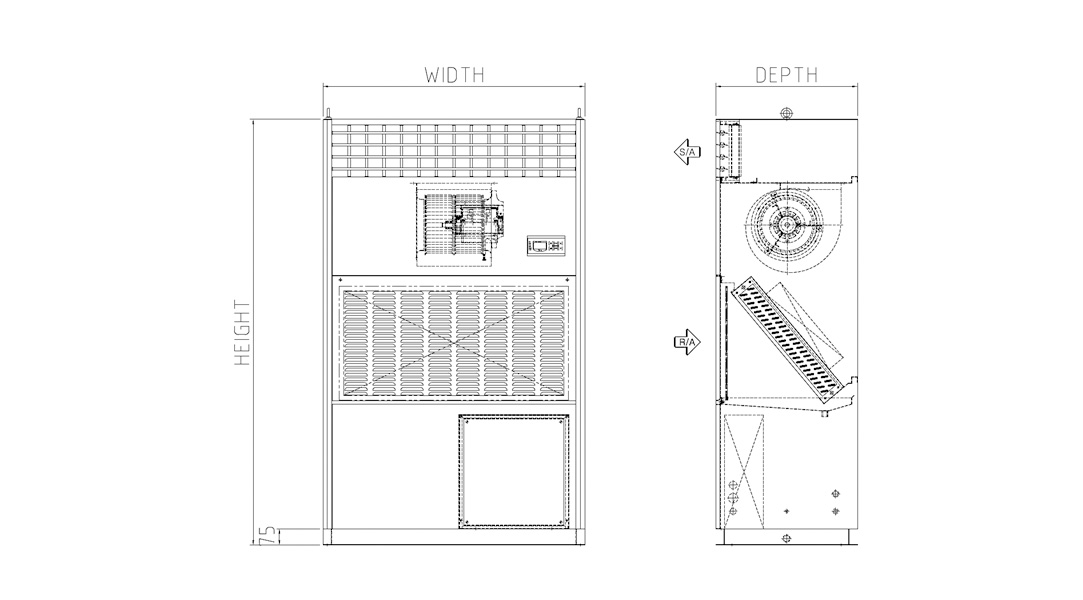

    CAPACITY & DIMENSIONS(Air Cooled PACU)

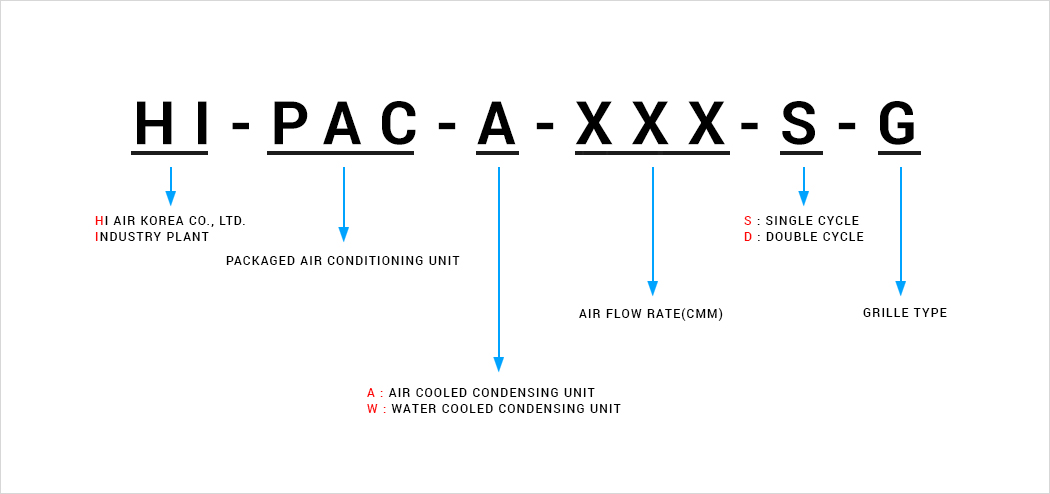

    No. MODEL COOLING
    CAPACITY
    AIR FLOW RATE EXTERNAL STATIC
    PRESSURE
    WIDTH DEPTH HEIGHT WEIGHT
    kcal/hr ㎥/min ㎥/h Pa mm mm mm kg
    1 HIPAC-A030SG 8,100 30 1,800 150 800 600 1,950 180
    2 HIPAC-A050SG 13,500 50 3,000 150 1,000 600 1,950 230
    3 HIPAC-A075SG 20,250 80 4,800 150 1,200 650 1,950 290
    4 HIPAC-A100SG 27,000 105 6,300 150 1,500 650 1,950 340
    5 HIPAC-A150DG 40,500 130 7,800 200 1,700 750 2,250 470
    6 HIPAC-A200DG 54,000 180 10,800 200 2,000 750 2,250 520

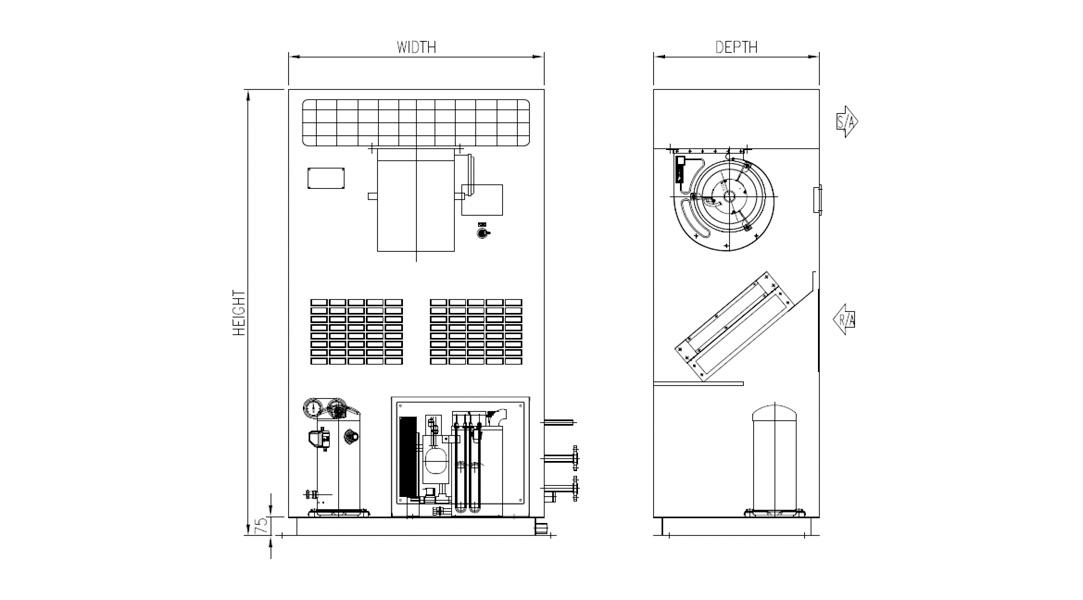

    CAPACITY & DIMENSIONS(Water Cooled PACU)

    No. MODEL COOLING
    CAPACITY
    AIR FLOW RATE EXTERNAL STATIC
    PRESSURE
    WIDTH DEPTH HEIGHT WEIGHT
    kcal/hr ㎥/min ㎥/h Pa mm mm mm kg
    1 HIPAC-A030SG 8,100 30 1,800 150 1,000 600 1,750 304
    2 HIPAC-A050SG 13,500 50 3,000 150 1,000 600 1,750 314
    3 HIPAC-A075SG 20,250 80 4,800 150 1,200 700 1,930 399
    4 HIPAC-A100SG 27,000 105 6,300 150 1,400 750 2,100 658
    5 HIPAC-A150DG 40,500 130 7,800 200 1,600 900 2,100 658
    6 HIPAC-A200DG 54,000 180 10,800 200 1,700 900 2,430 718
