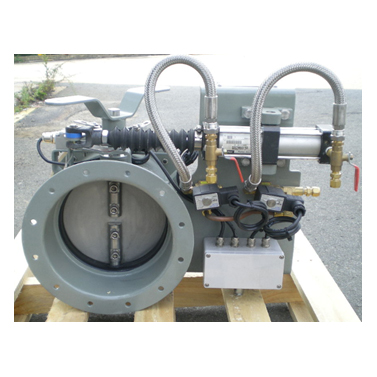

HI AIR KOREA(HAK) SHUT-OFF DAMPERS of naval ship are specially designed for propose use of naval ship. HAK SHUT-OFF DAMPERS are effective in isolating duct system that requires air tightness, such as working / stand-by fans.

The SHUT-OFF DAMPERS are built considering size, efficiency, reliability, maintainability and military standard.

The SHUT-OFF DAMPERS of naval ship are specifically manufactured to operate in various conditions of naval ship.

The special naval ship SHUT-OFF DAMPERS are satisfied with military standard of special performance. - Impact test : MIL-STD-901D - Vibration test : MIL-STD-167-1A

  • FEATURES
    • HAK SHUT-OFF DAMPERS can be manufactured to fit circular ducts.
    • SHUT-OFF DAMPERS can be fitted with pneumatic cylinders which shall include limit switches that detect the position of the damper blades which in turn can be interfaced with monitoring and control system.
    • SHUT-OFF DAMPER can be closed by electric signal through solenoid valve.
    • The sizes are from Ø150 ~ Ø1500.
    • An open/close indication is visible on the damper cylinder top.
    • Pneumatic cylinder supply air pressure : 4 ~ 7 kg/㎠
    • The damper requires 230 VAC of electrical supply to open the damper blades.
    • Blade air tight test pressure : 176 mmAq (Stay 10 minutes) → 80 mmAq
    • These dampers can operate at temperatures between -10 ~ +60˚C but subject to change depending on the selected components.
  • OPTIONS
    Part Material Thickness Finishing
    Casing SS400 8 mm Painted
    Galvanized
    Blades Stainless steel 304, 316 6 mm (Single, Φ700 or less)
    8 mm (Single, Φ701 or more)
    Passivation
    Shafts Stainless steel 304, 316 Φ25 (Φ1000 or less)
    Φ50 (Φ1001 or more)
    Passivation
    Linkage SS400 8 mm (Φ700 or less)M
    16 mm (Φ701 or more)
    Painted
    Galvanized
    Bearings Stainless steel 316L or Brass - -
  • CAPACITIES

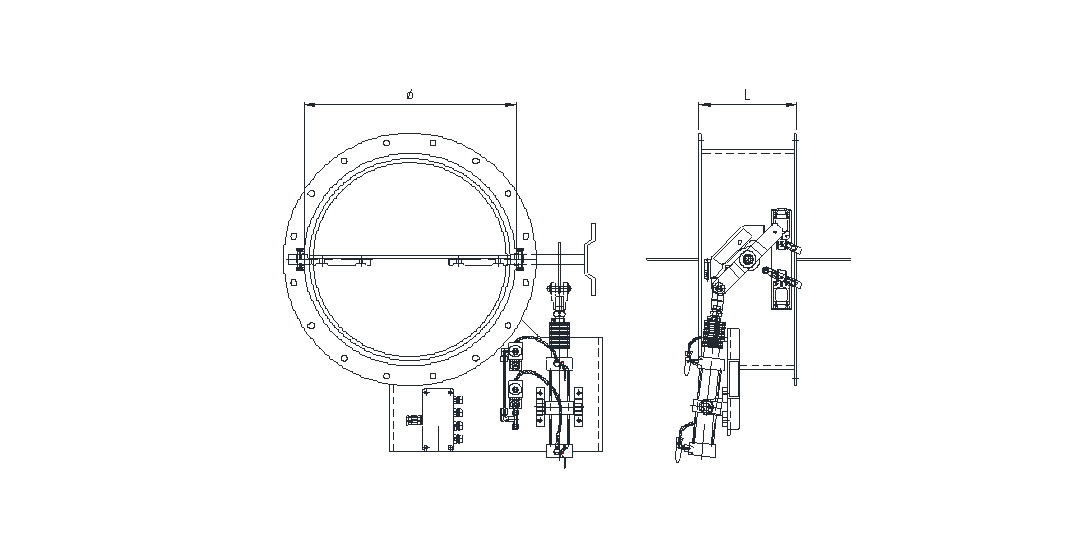

    GENERAL ARRANGEMENT DRAWING

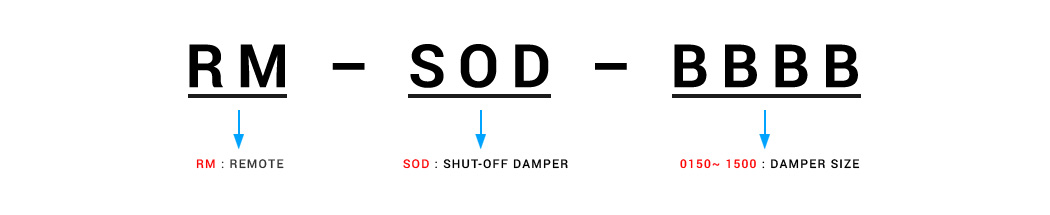

    Model No. Size(Ø) Length(mm)
    RM-SOD-0150 150 250
    RM-SOD-0200 200 250
    RM-SOD-0250 250 250
    RM-SOD-0300 300 250
    RM-SOD-0350 350 250
    RM-SOD-0400 400 250
    RM-SOD-0450 450 250
    RM-SOD-0500 500 250
    RM-SOD-0550 550 250
    RM-SOD-0600 600 250
    RM-SOD-0700 700 300
    RM-SOD-0800 800 300
    RM-SOD-0900 900 250
    RM-SOD-1000 1000 300
    RM-SOD-1100 1100 300
    RM-SOD-1200 1200 300
    RM-SOD-1300 1300 300
    RM-SOD-1400 1400 300
    RM-SOD-1500 1500 300
